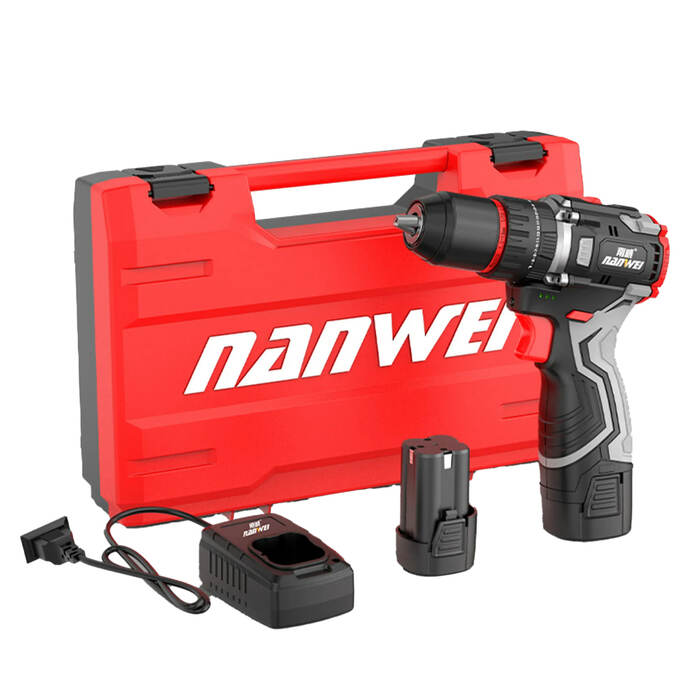

Brand: Nanwei
Model: D5166C (Cordless Impact Drill 13MM)
Type: Cordless Impact Drill / Electric Drill (Hammer Function)
Chuck Size: 13 mm (Metal Keyless Chuck)
Voltage: 20V–21V Li-ion Battery (depending on version)
Performance
No-Load Speed: ~0–450 / 0–1500(1600) rpm (2-speed control) Max Torque: ~70–100 Nm (version dependent) Impact Rate: ~14,000–22,000 bpm (varies by model) Functions: Drilling, hammer drilling, screw driving, impact fastening Torque Settings: 20+3 or 25+3 (depending on variant)
Drilling Capacity
Steel: ~10 mm Wood: ~30–60 mm (depending on motor version) Concrete: ~10 mm
Battery & Power
Battery Type: Li-ion (usually 1.5Ah–4.0Ah packs) Battery Setup: 1–2 batteries (kit dependent) Charger: 220–240V fast charger
Weight & Dimensions
Weight: ~1.5–3.0 kg (with battery, depends on kit version) Length: ~18–25 cm (compact handheld design, varies slightly by housing) Grip Design: Ergonomic anti-slip handle
Features Brushless motor (higher efficiency, longer lifespan) 2-speed gearbox (low torque / high speed mode) Forward & reverse rotation switch LED work light for dark environments Metal 13mm self-locking chuck Adjustable clutch for screw control
Technical Specifications
- Power / ប្រើប្រាស់Battery DC / ថ្ម
- Battery / ថ្ម2.0Ah x 2
- Gross Weight / ទម្ងន់1.5 KG
- Rated Power / កម្លាំងភ្លើង16.8 V
