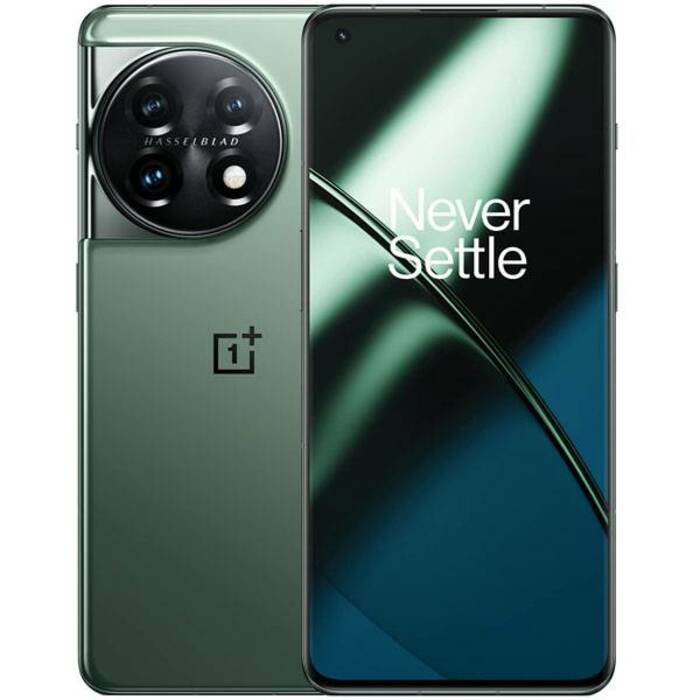

OnePlus 11 5G 256GB 12GB

NETWORK
Technology GSM / CDMA / HSPA / EVDO / LTE / 5G
2G bands GSM 850 / 900 / 1800 / 1900 – SIM 1 & SIM 2 (dual-SIM model only)
CDMA 800
3G bands HSDPA 800 / 850 / 900 / 1700(AWS) / 1900 / 2100
CDMA2000 1xEV-DO
4G bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 38, 39, 41, 40, 46, 48, 66, 71 – International
1, 2, 3, 4, 5, 7, 8, 12, 17, 18, 19, 20, 26, 28, 34, 38, 39, 40, 41, 66 – China
5G bands 1, 2, 3, 5, 7, 8, 20, 25, 28, 30, 38, 40, 41, 66, 71, 75, 77, 78 SA/NSA – International
1, 3, 5, 7, 8, 20, 28, 38, 40, 41, 66, 77, 78 SA/NSA – China
Speed HSPA, LTE-A (CA), 5G

LAUNCH
Announced 2023, January 04
Status Available. Released 2023, January 09

BODY
Dimensions 163.1 x 74.1 x 8.5 mm (6.42 x 2.92 x 0.33 in)
Weight 205 g (7.23 oz)
Build Glass front (Gorilla Glass Victus), glass back (Gorilla Glass 5), aluminum frame
SIM Single SIM (Nano-SIM) or Dual SIM (2x Nano-SIM, eSIM, dual stand-by)
IP64

DISPLAY
Type LTPO3 Fluid AMOLED, 1B colors, 120Hz, Dolby Vision, HDR10+, 500 nits (typ), 800 nits (HBM), 1300 nits (peak)
Size 6.7 inches, 108.4 cm2 (~89.7% screen-to-body ratio)
Resolution 1440 x 3216 pixels, 20:9 ratio (~525 ppi density)
Protection Corning Gorilla Glass Victus
Always-on display

PLATFORM
OS Android 13, OxygenOS 13 (International), ColorOS 13 (China)
Chipset Qualcomm SM8550-AB Snapdragon 8 Gen 2 (4 nm)
CPU Octa-core (1×3.2 GHz Cortex-X3 & 2×2.8 GHz Cortex-A715 & 2×2.8 GHz Cortex-A710 & 3×2.0 GHz Cortex-A510)
GPU Adreno 740

MEMORY
Card slot No
Internal 128GB 8GB RAM, 256GB 12GB RAM, 256GB 16GB RAM, 512GB 16GB RAM
UFS 3.1 – 128GB only
UFS 4.0

MAIN CAMERA
Triple 50 MP, f/1.8, 24mm (wide), 1/1.56″, 1.0µm, multi-directional PDAF, OIS
32 MP, f/2.0, 48mm (telephoto), 1/2.74″, PDAF, 2x optical zoom
48 MP, f/2.2, 115˚, (ultrawide), 1/2.0″, AF
Features Hasselblad Color Calibration, Dual-LED flash, HDR, panorama
Video 8K@24fps, 4K@30/60fps, 1080p@30/60/240fps, Auto HDR, gyro-EIS

SELFIE CAMERA
Single 16 MP, f/2.5, 25mm (wide), 1.0µm
Features Auto-HDR, panorama
Video 1080p@30fps, gyro-EIS

SOUND
Loudspeaker Yes, with stereo speakers
3.5mm jack No
24-bit/192kHz audio

COMMS
WLAN Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band, Wi-Fi Direct
Bluetooth 5.3, A2DP, LE, aptX HD
Positioning GPS (L1+L5), GLONASS (G1), BDS (B1I+B1c+B2a), GALILEO (E1+E5a), QZSS (L1+L5)
NFC Yes, eSE, HCE
Radio No
USB USB Type-C 2.0, OTG

FEATURES
Sensors Fingerprint (under display, optical), accelerometer, gyro, proximity, compass, color spectrum

BATTERY
Type Li-Po 5000 mAh, non-removable
Charging 100W wired, PD, 1-50% in 10 min, 1-100% in 25 min (advertised) – International
80W wired, PD – USA

MISC
Colors Titan Black, Eternal Green
Models PBH110

TESTS
Performance AnTuTu: 1140661 (v9)
GeekBench: 4899 (v5.1)
GFXBench: 57fps (ES 3.1 onscreen)
Display Contrast ratio: Infinite (nominal)
Camera Photo / Video
Loudspeaker -25.2 LUFS (Very good)
Battery life Endurance rating 108h
